110395 Brady 3PS-750-2-WT PermaSleeve Wire Marking Sleeves 50.80mm x 31.80mm

BradySKU: 110395

  • Delivery: Free (UK Standard)

Price:
£404.97 £485.96
Enquire Need Product advice or a quote? Contact us on the form below

Description

Brady PermaSleeve heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215, and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used with Brady Sleeve and Datab Printers, as well as Thermal Transfer printers.

Whats in the box:

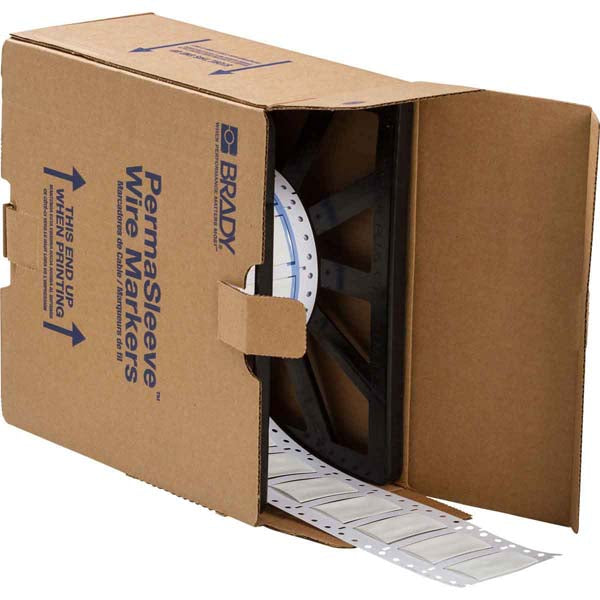

  • White PermaSleeve Wire Marking Sleeves 50.80mm x 31.80mm
  • 100 markers per roll

Features:

  • Material: b-342 Heat-Shrink Polyolefin Sleeve
  • Shrink ratio: 3:1
  • IP Enabled
  • Double-sided printable
  • Colour: White
  • Core diameter: 76.20mm
  • Max service temperature: 135C
  • Min service temperature: -55C
  • Wire Gauge: 6 to 4
  • Max. Wire/Cable Diameter: 17.78mm
  • Min. Wire/Cable Diameter: 6.35 mm
  • Recommended Ribbon Series R6600
  • Part contains an SVHC
  • RoHS Compliance Status: Compliant with Directive 2011/65/EU and 2015/863
  • UL Recognised to UL224; SAE-AMS-DTL-23053/5 C (Class 1); SAE-AS-81531
  • Compliant with Directive 2011/65/EU and 2015/863
