151186 - BradyPrinter A5500 Flag Printer Applicator WiFi

BradySKU: 151186

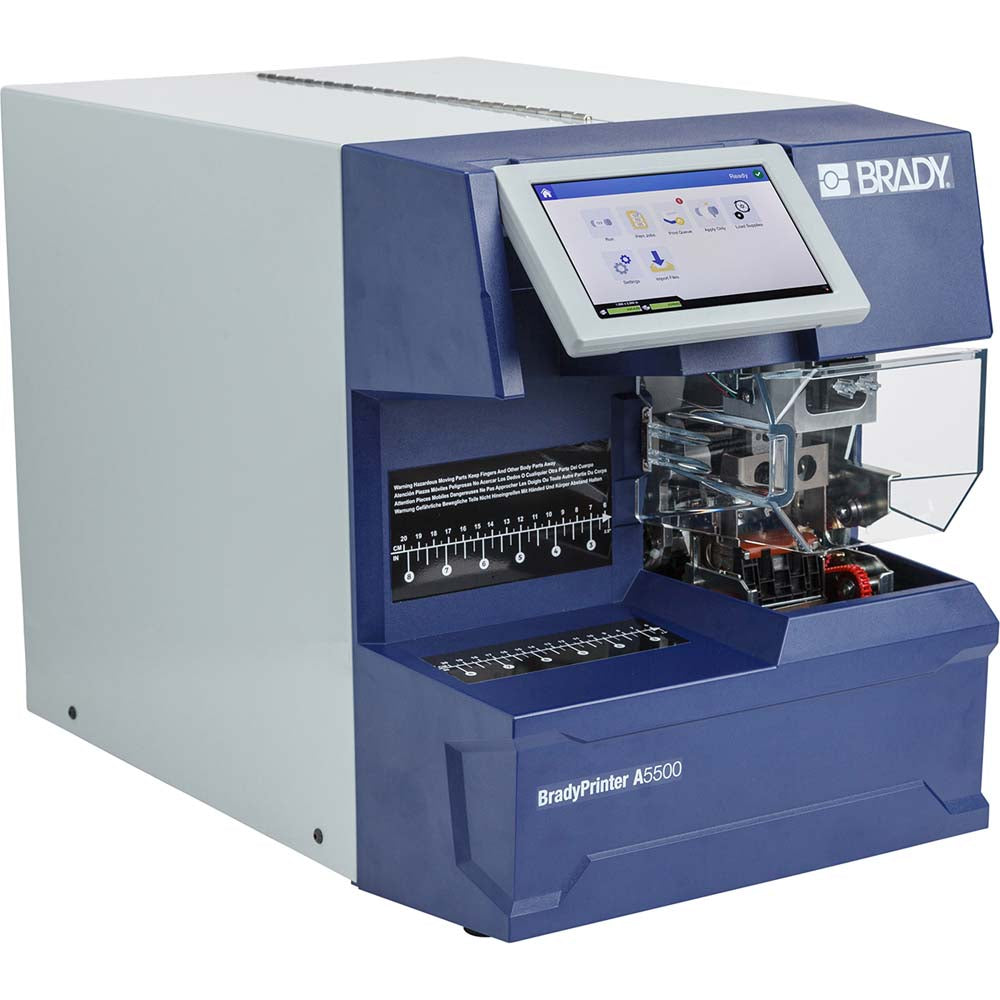

BradyPrinter A5500 Flag Printer Applicator with Wifi

£13,950.00 £16,740.00
Enquire Need Product advice or a quote? Contact us on the form below

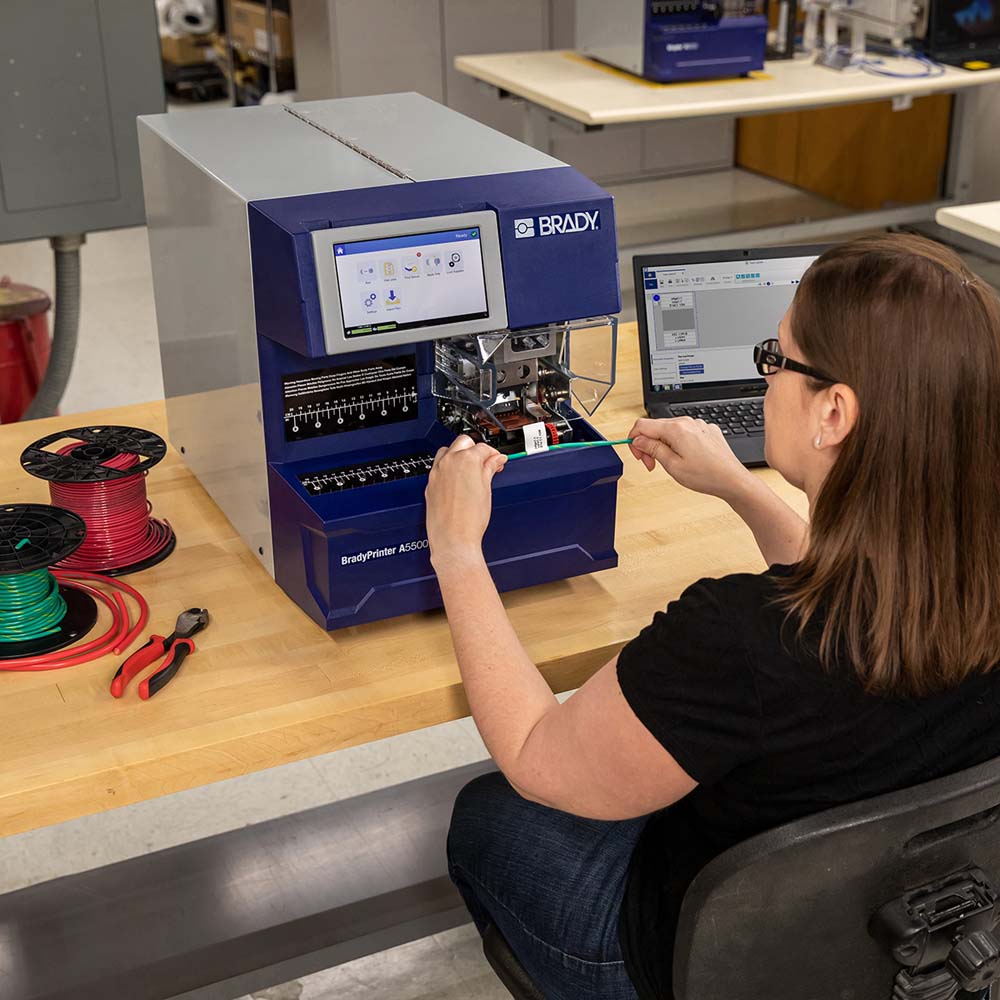

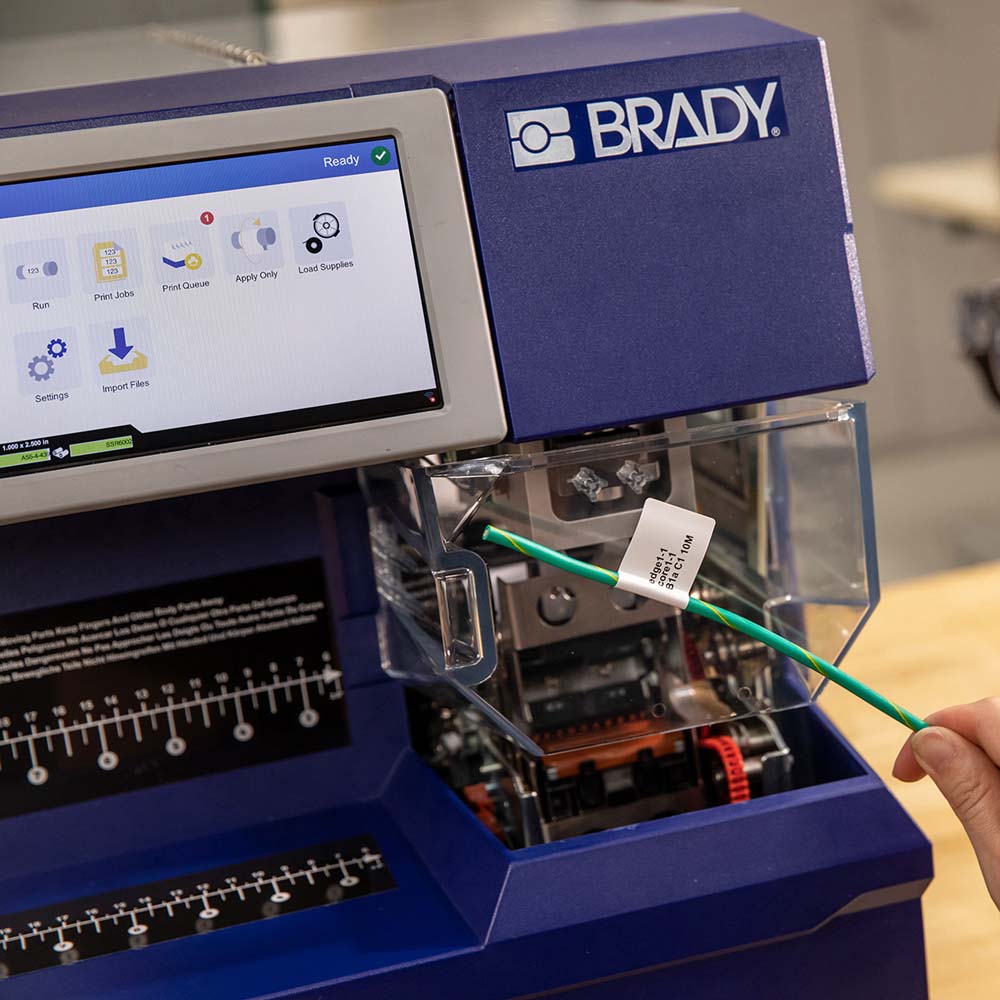

The BradyPrinter A5500 Flag Printer Applicator helps increase production output and enhance identification quality by automatically printing and applying flag labels. It can save quite a lot of money by identifying cables in 5 seconds and by eliminating the need to print labels in advance and the time needed to apply them by hand.

The BradyPrinter A5500 enables 300 dpi prints for barcodes, logos and diagrams, and applies reliable cable flags that can communicate a lot of information.

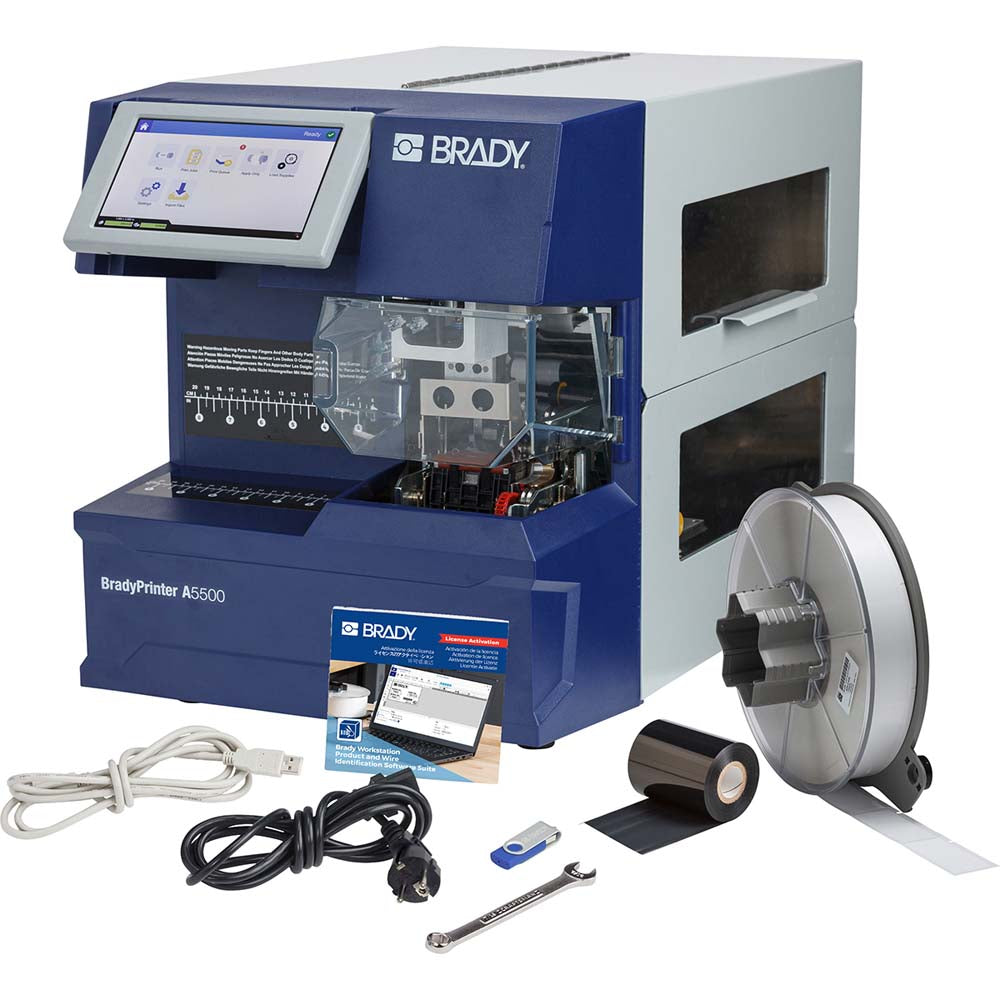

Whats in the box:

  • 1x Brady A5500 Flag Printer Applicator
  • Brady Workstation Product and Wire ID Suite
  • A5500 print driver
  • USB Cable
  • Power cord
  • 1x roll of A55-4-483
  • 1x roll of SSR6002 ribbon


  • Print technology: Thermal Transfer
  • Application: Cable and wire identification
  • Barcode type: 2D and 1D (linear)
  • Machine cycle time: 4.5 to 5 seconds
  • Dimensions: 383.54mm W x 452.12mm H x 604.52mm D
  • Weight: 34kg
  • Minimum label height: 19.05mm
  • Minimum label width: 25.40mm
  • Materials supported: B-483
  • Connectivity options: Ethernet, USB, Wifi
  • Colour Touchscreen display
  • 32GB internal memory capacity
  • Print speed: 76.20mm/sec
  • Monocolour
  • 300dpi
  • Max print length: 101.60mm
  • Max label height: 101.60mm
  • Max label width: 50.80mm
  • Max print width: 50.80mm
  • Max wire / cable diameter: 15.24mm
  • Min wire/cable diameter: 1.524mm
  • Font styles: Arial, Arial 65, Courier New, Tahoma, Times New Roman
  • Hours of operation: 24 hours/ 7 days
  • B- Numbers supported: B-483
  • Power requirements: 100-240V
  • Programming language: BPL
  • Software compatibility: Brady Workstation
  • 1 year warranty
  • Approval/Compliance: CE 2014/35/EU LVD, 2014/30/EU EMCD, 2011/65/EU, 2015/863/EU; UL 60950-1, 2nd Edition; EN \ IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011+ A2:2013; WEEE; RoHS
  • Part contains an SVHC
