Description

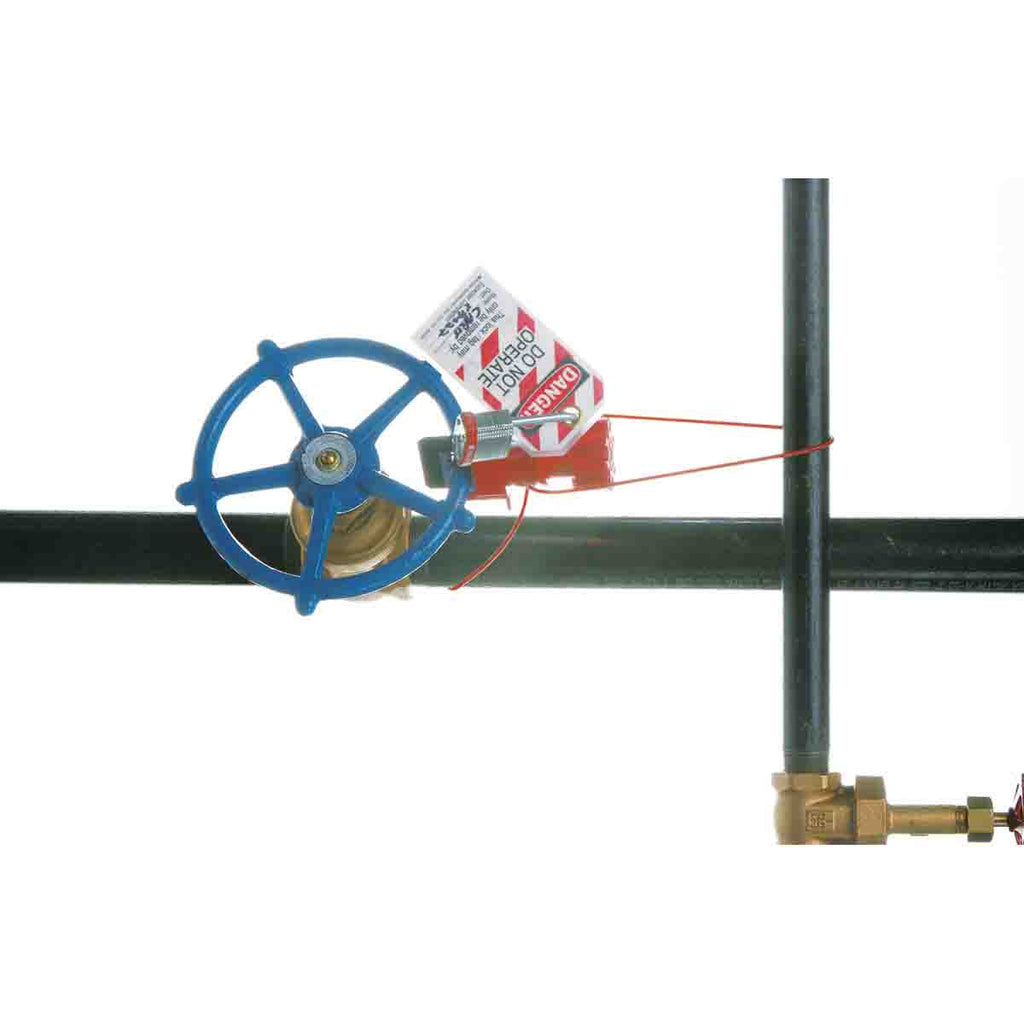

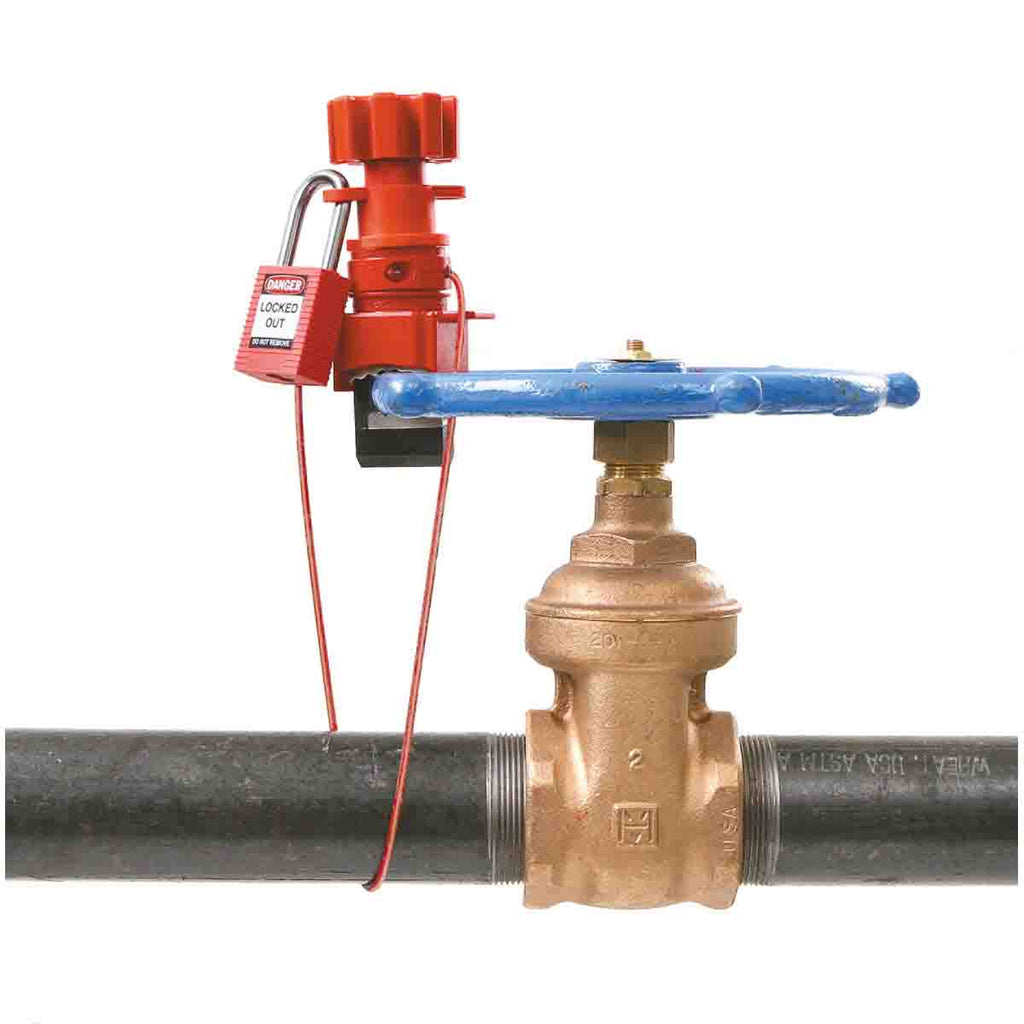

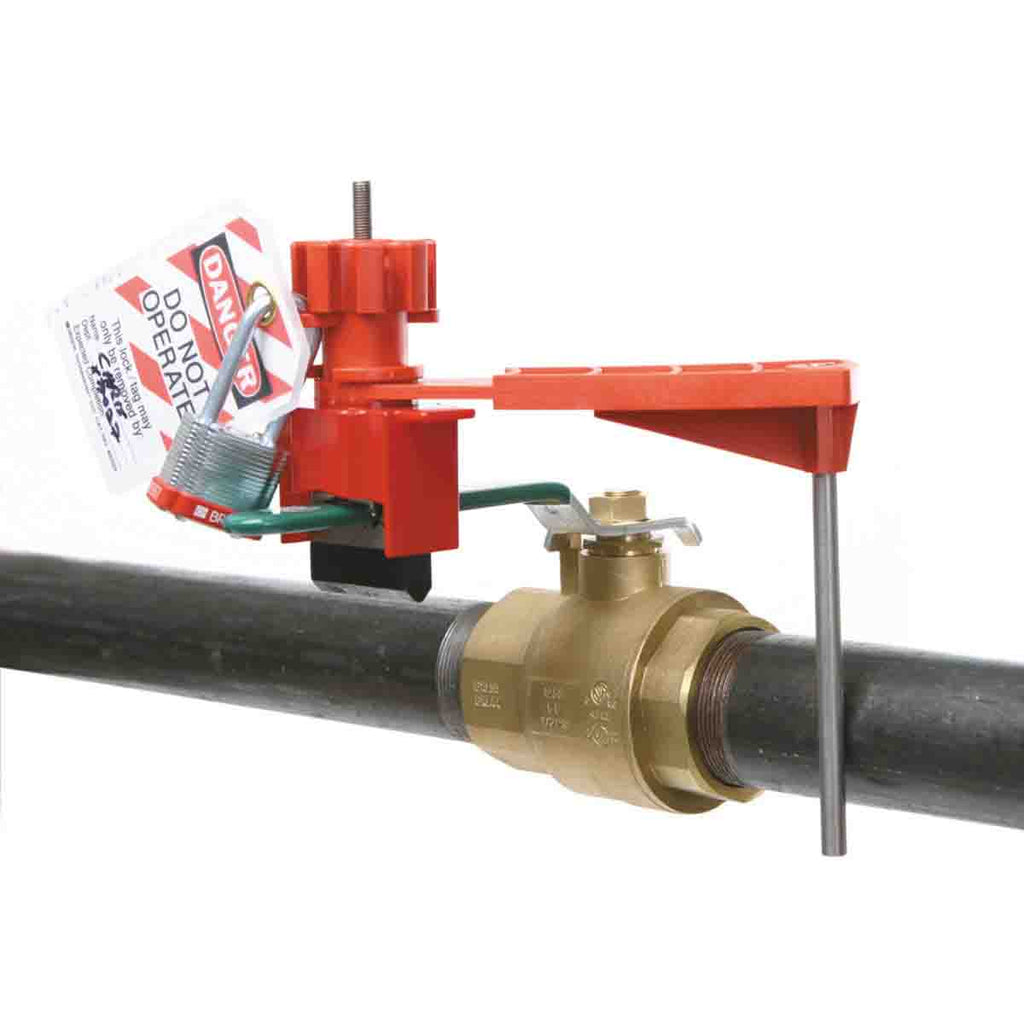

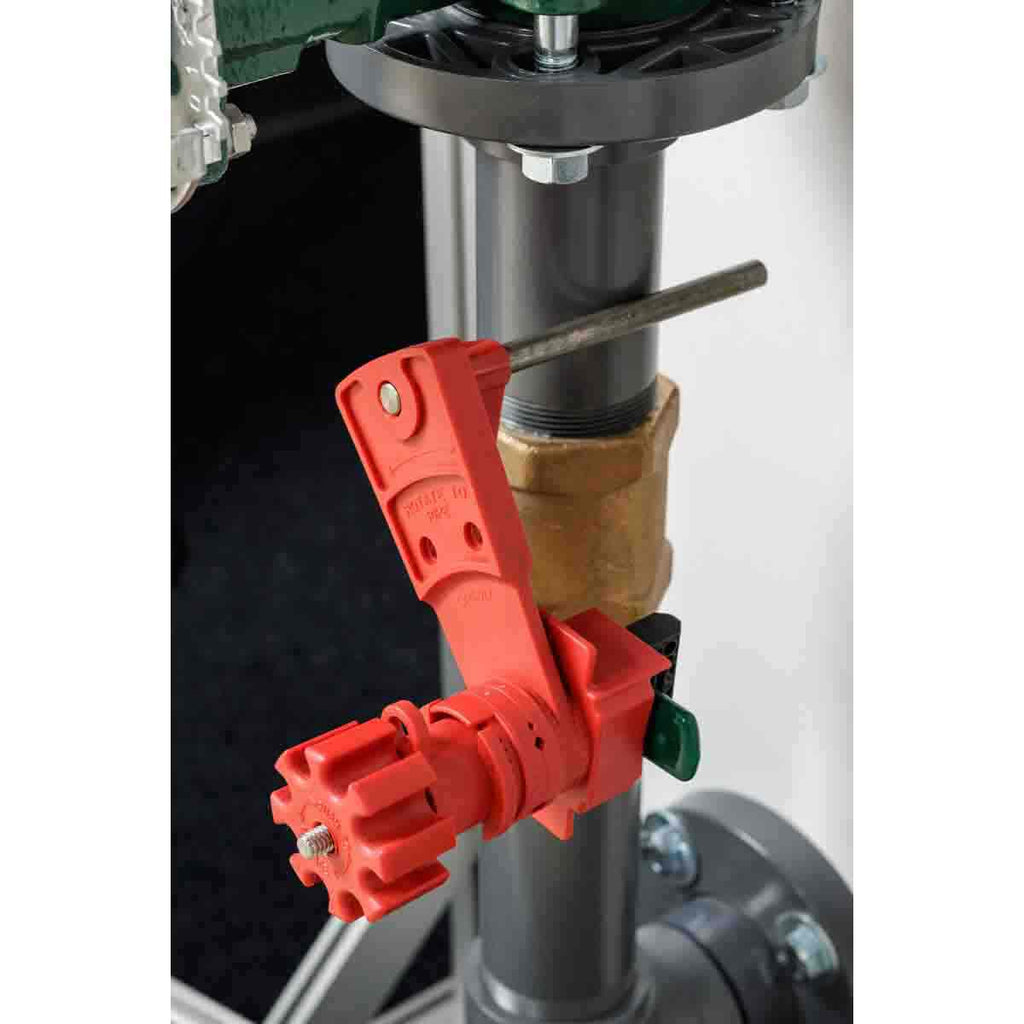

Versatile, rugged, easy to use and lightweight, Brady Universal Valve Lockouts are effective for a variety types of standard valves. They can also be used to lock out large levers, T-handles and hard-to-secure mechanical devices. New open-ended clamp fits over closed rings and wide handles. Made of industrial-grade steel and nylon for extra impact and chemical resistance. Cable attachment is 3.175mm diameter non-conductive nylon cable. Additional base clamping units, blocking arms and cable attachments sold separately.
Whats in the box:

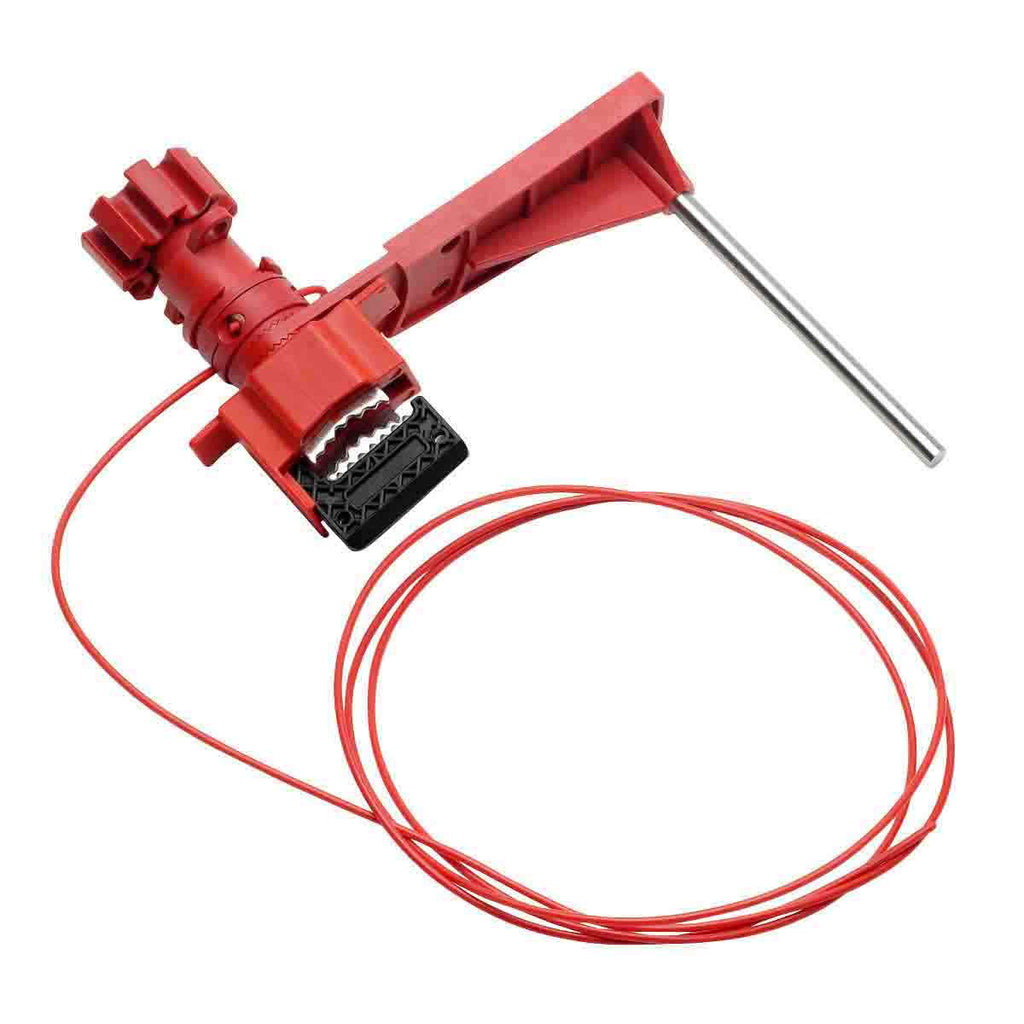

- 1x Brady Large Universal Valve Lockout with Nylon Cable and Blocking Arm 224.1mm x 162mm
Features:
- Dimensions: 224.10mm x W x 162.00mm x H x 2.44 m L
- Brady Material.: LOTO-24 Glass-filled Nylon
- Colour: Red
- Max shackle diameter: 9.00mm
- Min shackle clearance: 20.00mm
- Max service temp: 120C
- Min service temp: -20C
- Designed for mechanical risk management
- Max number of padlocks that can be attached: 2
- Max handle thickness: 27.94mm
- Max Valve Handle width: 40.64mm
- Max wire/cable diameter: 3.25mm
- Min wire/cable diameter: 3.25mm
- Does not contain an SVHC
